Airsoft Shotgun (3D print)
Всем привет!

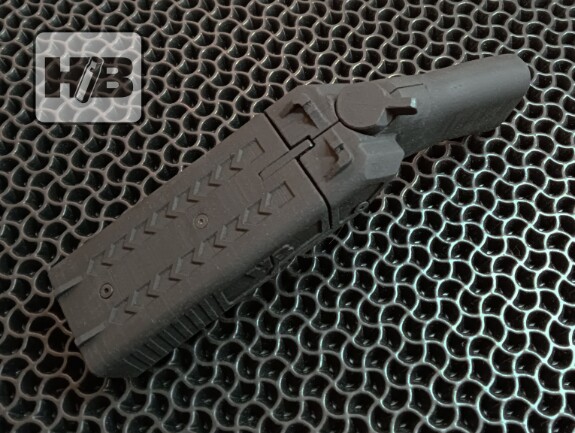

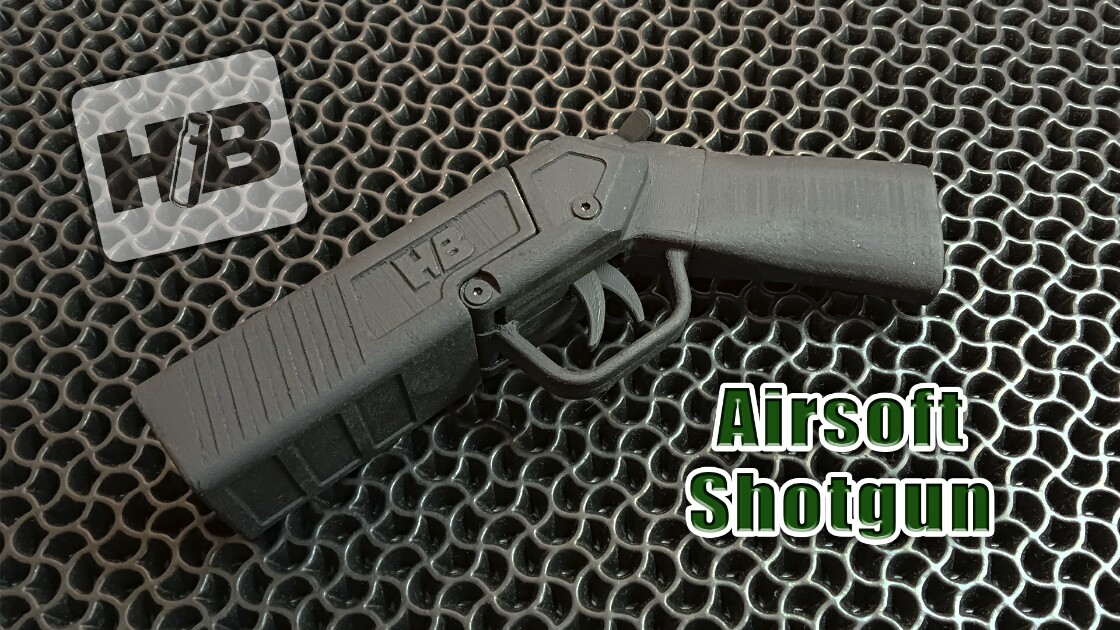

Продолжая тему газовых шеллов 12К, представляю прототип страйкбольного обреза. В качестве боеприпасов используются страйкбольные газовые шеллы в форм-факторе гильзы 12 калибра.
Для сборки обреза потребуется:
- винт DIN7991 м3х8мм – 2 шт.
- винт DIN7991 м3х25мм – 2 шт.
- винт DIN7991 м4х10мм – 2 шт.
- винт DIN7991 м4х50мм – 1 шт.
- винт ISO7380 м3х8мм – 2 шт.
- винт ISO7380 м3х20мм – 2-4 шт.
- Потайная гайка М4 – 1 шт.
- пружина растяжения 4,5х25мм – 1 шт.
- пружина 5х13мм – 1 шт.
- пружина 8х15мм – 2 шт.
Видео по сборке/Assembly video - https://youtu.be/IyQZBzTx7og
Обновления:
- 03.2023 - добавлен внутренний ствол для шеллов APS
--------------------------------------------------------------------------
Continuing the topic of 12K gas shells, I present a prototype of an airsoft shotgun. As ammunition, airsoft gas shells in the form factor of a 12-gauge cartridge case are used.
To assemble the trim you will need:
- screw DIN7991 m3x8mm - 2 pcs.
- screw DIN7991 m3x25mm - 2 pcs.
- screw DIN7991 m4x10mm - 2 pcs.
- screw DIN7991 m4x50mm - 1 pc.
- screw ISO7380 m3x8mm - 2 pcs.
- screw ISO7380 m3x20mm - 2-4 pcs.
- Countersunk nut M4 - 1 pc.
- extension spring 4.5x25mm - 1 pc.
- spring 5x13mm - 1 pc.
- spring 8x15mm - 2 pcs.
Updates:
- 03.2023 - added inner barrel for APS shells
3D PRINTING SETTINGS
Rafts: No
Supports: Yes
Resolution: 0.2 or better
Infill: 30-100%
Notes: This modification of designed to be printed with 0.4 nozzle with 3 perimeters
Rafts: No
Supports: Yes
Resolution: 0.2 or better
Infill: 30-100%
Notes: This modification of designed to be printed with 0.4 nozzle with 3 perimeters
